AM-170BD

Equipped with a set of upper fabric tension racks to control the tension of the fabric during the transmission process. Reasonable tension control is crucial to ensure the flatness and inspection effect of the fabric. The upper fabric tension rack can flexibly adjust the tension according to the characteristics of the fabric and processing requirements, so that the fabric can maintain a good state in the subsequent processing process.

New product under development.....

Rewinding machine

Shoe forming machine

There are 5 cloth-winding and cloth-feeding shafts in total. Among them, there is 1 shaft with a shaft diameter of 140mm and 4 shafts with a shaft diameter of 219mm, and all 4 shafts with a diameter of 219mm are wrapped with tape. The shaft length is 2300mm and the effective width reaches 2100mm. The larger effective width can meet the processing requirements of wide fabrics, improve production efficiency, and reduce the inconvenience of operation caused by fabric width restrictions.

AM-170BD

Characteristics Comparison

Some advantages of our machines compared with other manufacturers

First point

we:Electronic edge alignment for precise and uniform fabric edges

They:Manual alignment, inaccurate and inconsistent

Second point

We:Automatically adjusts based on fabric type to avoid wrinkles or damage

They:Depends on experience, easily too loose or too tight

Third point

we:Meter-controlled, accurate length control and auto-stop function

They:Measured manually with high error margin

Still struggling with traditional lasting machines?

1.Inconsistent Tightness – Causes fabric stretching, wrinkling, or deformation?

2.Manual Measurement – High error rate, impacts downstream processing?

3.Slow Operation – Manual forward/reverse adjustment reduces productivity?

4.Fixed Angle – Cannot meet packaging or process needs for twill/diagonal rolls?

5.Rust-Prone Structure – Increases maintenance and risk of contamination?

call me

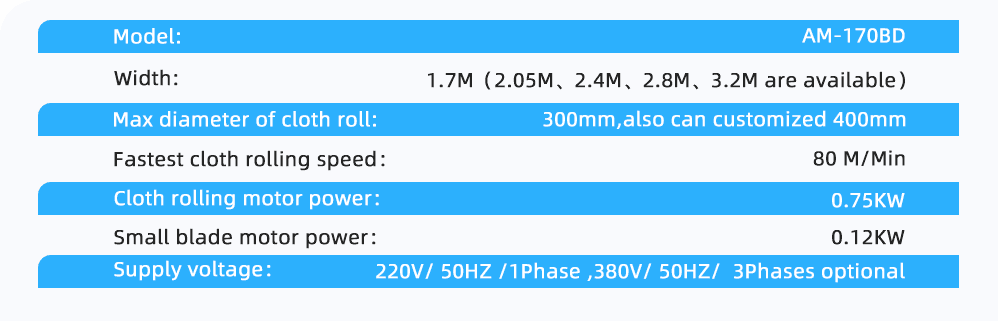

Parameters

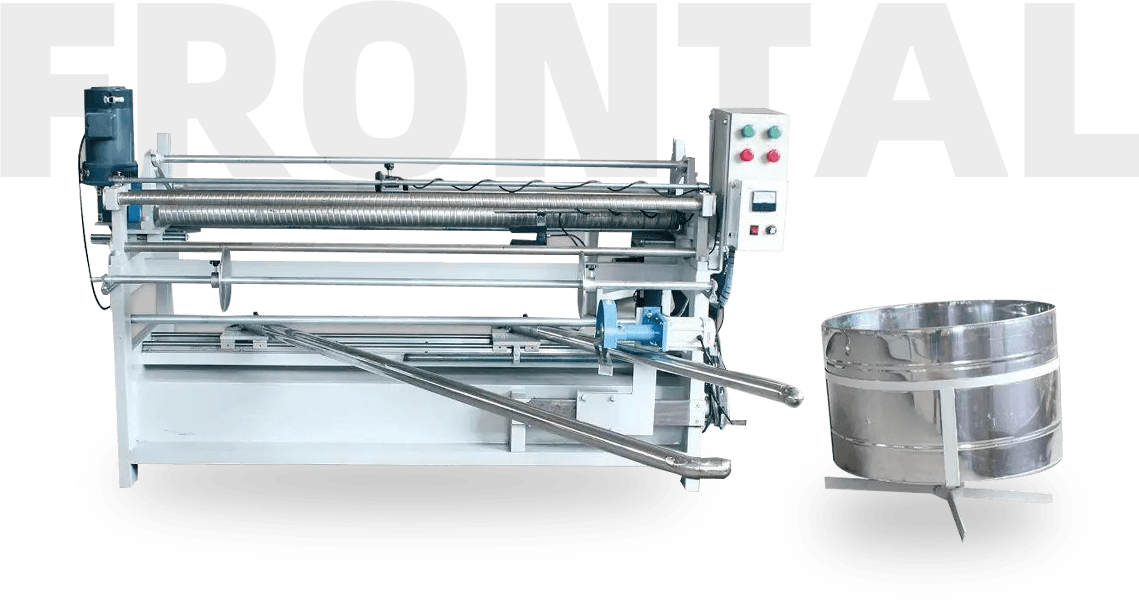

Rewinding machine—-AM-170BD

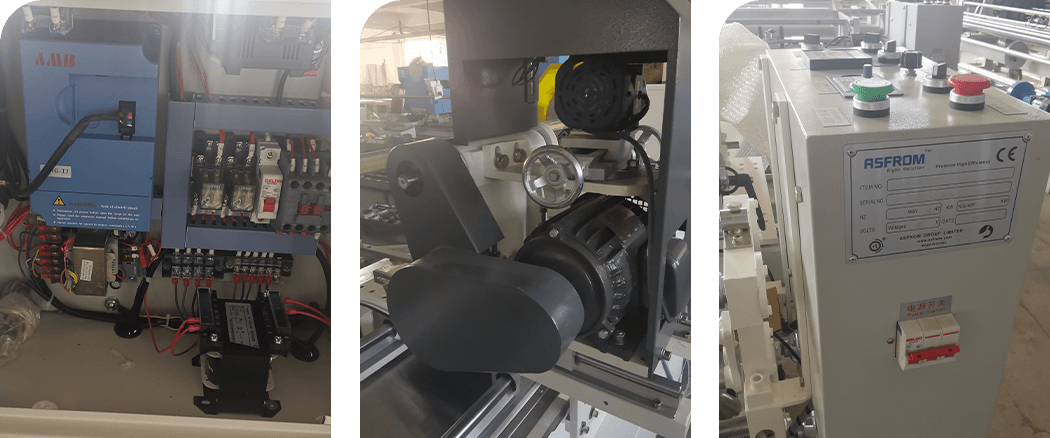

Detailed drawing

It plays an important role in the repeated rewinding link before round packaging or various fabrics are cut and bundled. It can be rolled into straight or 45-degree twill coils.
