4.The floating bottom rubber block design is adopted, which automatically adjusts the curvature according to the shape of the outsole, with uniform pressure, making marking more accurate and convenient, and is conducive to roughening, gluing and bonding operations, without the need for a marking mold.

FB-M8825

New product under development.....

Outsole Marking
Machine (360° rotation）

Shoe forming machine

1.High-strength and tough rubber blocks: The machine uses multiple high-strength and tough rubber blocks, which can automatically adjust according to the bottom shape of various shoe types to ensure that the height of the front and back and the inside is consistent.

2.Automatic pressure adjustment: The machine is equipped with front and rear pressure rods controlled by automatic cylinders, which can automatically adjust the pressure evenly without manually adjusting the height of the shoe last during operation. This not only saves time and energy, but also improves production efficiency.

3.High-precision fit: No need to pad any material, the sole and the last can fit perfectly, reducing errors in the production process.

FB-M8825

Characteristics Comparison

Some advantages of our machines compared with other manufacturers

First point

we:Automatic rubber blocks adapt to various outsole shapes

They:Manual adjustment for each shoe shape; time-consuming

Second point

We:No mold required; floating rubber adjusts curvature

They:Must use marking molds for each shoe type

Third point

we:Cylinder-controlled pressure, evenly adjusted automatically

They:Requires manual tuning, inconsistent pressure

Still struggling with traditional lasting machines?

1.Low precision — Hard to handle curves and fine details?

2.Dusty workspace — No dust collection, poor hygiene?

3.High noise — Open design, loud and disruptive？

4.Hard to operate — Needs skilled workers, not beginner-friendly？

5Fixed position — Difficult to move or adjust?

6.Low efficiency — Manual work, slow output?

call me

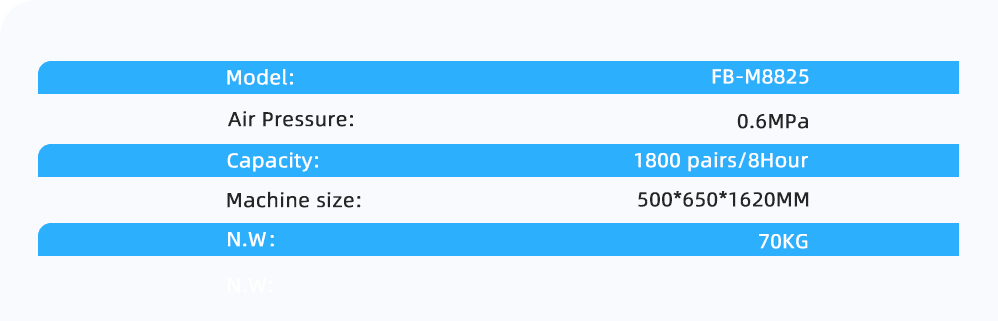

Parameters

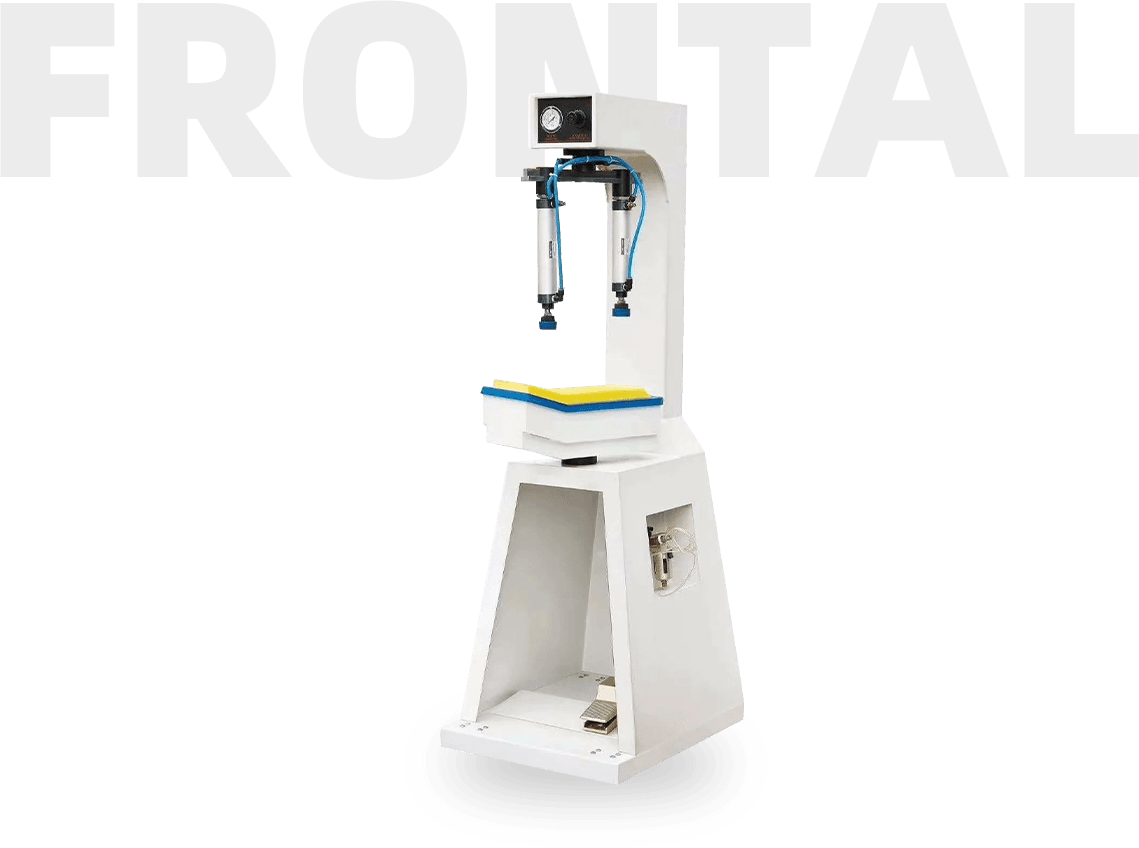

Outsole Marking Machine (360° rotation）—-FB-M8825

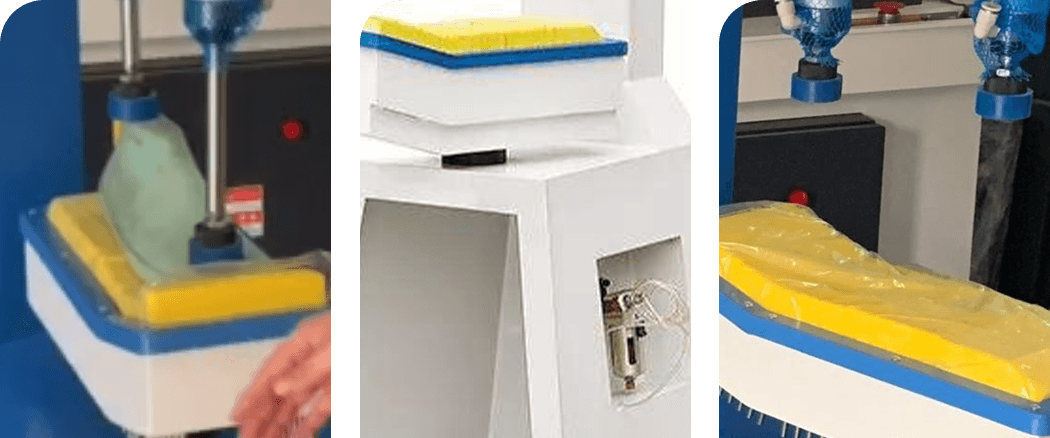

Detailed drawing

It mainly used for marking shoes to facilitate rubbing.
