AM-635

Equipped with a set of upper fabric tension racks to control the tension of the fabric during the transmission process. Reasonable tension control is crucial to ensure the flatness and inspection effect of the fabric. The upper fabric tension rack can flexibly adjust the tension according to the characteristics of the fabric and processing requirements, so that the fabric can maintain a good state in the subsequent processing process.

New product under development.....

Fabric Inspection Machine

Shoe forming machine

There are 5 cloth-winding and cloth-feeding shafts in total. Among them, there is 1 shaft with a shaft diameter of 140mm and 4 shafts with a shaft diameter of 219mm, and all 4 shafts with a diameter of 219mm are wrapped with tape. The shaft length is 2300mm and the effective width reaches 2100mm. The larger effective width can meet the processing requirements of wide fabrics, improve production efficiency, and reduce the inconvenience of operation caused by fabric width restrictions.

AM-635

Characteristics Comparison

Some advantages of our machines compared with other manufacturers

First point

we:5-axis high-efficiency feeding system for smooth and stable feeding

They:Manual cloth feeding, slow and error-prone

Second point

We：Infrared tracking + edge alignment ensures precise fabric position

They:Cloth deviation and folding common

Third point

we:Adjustable tension rack to maintain optimal fabric tightness

They:Manual adjustment, tension inconsistent

Still struggling with traditional lasting machines?

1.Poor defect detection due to weak lighting and no edge tracking?

2.Manual tension adjustment, difficult to maintain consistent tightness?

3.High labor cost and operator fatigue during long shifts?

4.Low processing speed, unable to meet high-volume production demands?

5.Machine wear and tear, frequent maintenance required?

call me

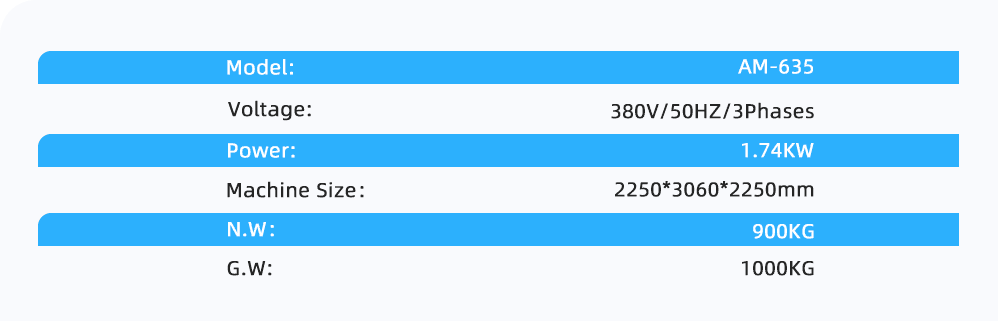

Parameters

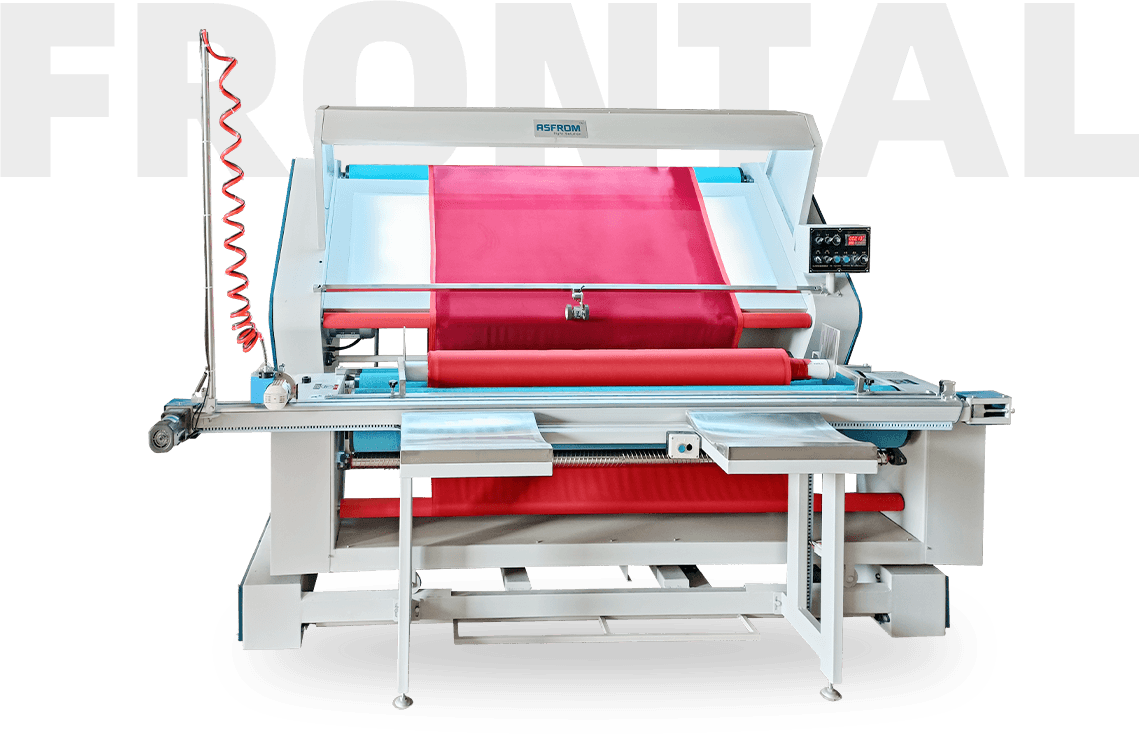

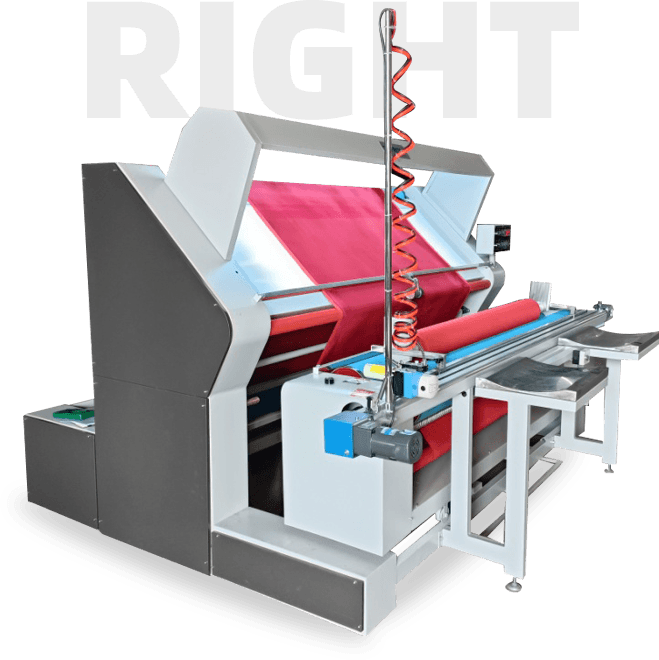

Fabric Inspection Machine—-AM-635

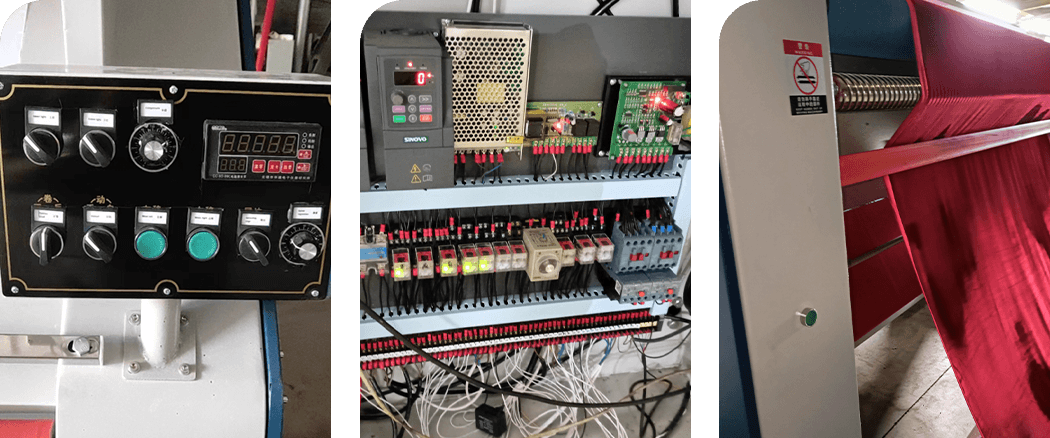

Detailed drawing

This machine is very important in the textile industry. It is used for fabric coding, inspection and winding. It is suitable for knitted fabrics, woven fabrics, non-woven fabrics and other types of fabrics.
