2.Uniform cooling effect: The closed direct cooling refrigeration system is adopted, with a fast cooling speed, reaching -15°C in five minutes, and a good shaping effect, ensuring that the toe cooling process is uniform and stable.

ACH-712E-2C2H

3. Mold system: The hot mold can simultaneously heat the steam to soften the upper, making the upper more fitting, more elastic and shiny. The cold mold fixture uses a Teflon strap group with a last mold, which is made according to the customer's last, with an accuracy of 98%. The mold is fixed with a buckle, and the mold can be quickly replaced. It only takes five or six minutes for a skilled worker to disassemble and assemble a set of molds.

New product under development.....

Toe Cap Molding Machine
(For 2 Colds & 2 Hots)

Shoe forming machine

1. Hot mold steam system: The steam heating system is located above the machine, with a fast heating speed, reaching 120 degrees Celsius in 15 minutes, and the temperature fluctuation is only 2-5 degrees Celsius. It is suitable for different materials and has excellent results.

Toe Cap Molding Machine
(For 2 Colds & 2 Hots) ---

ACH-712E-2C2H

Characteristics Comparison

Some advantages of our machines compared with other manufacturers

Characteristics
Comparison

First point

We:Rapid steam heating, 120°C in 15 minutes,
stable ±2–5°C

They:Slow heating, unstable temperature,
easy to overburn

Second point

We: Closed direct cooling, -15°C in 5 minutes,
uniform cooling

They: Ordinary cooling, uneven temperature,
longer waiting time

Third point

We:Quick change, only 5–6 minutes, high
accuracy (98%)

They:Complicated mold change, time-consuming
, low accuracy

STILL STRUGGLING WITH TADITIONAL ALSTING MACHINERS?

1.Manual positioning, prone to deviation and errors?
2.Manual adjustment, requires skilled workers, hard to master?
3.Lower output, frequent defects, high rework rate?
4.Flat working table, inconvenient, increases labor fatigue?

It's time to upgrade.
Discover the power of smart lasting automation—stable, efficient, and easy to use.

CALL ME

Parameters

Toe Cap Molding Machine----ACH-712E-2C2H

Parameters

Refrigerator Power:

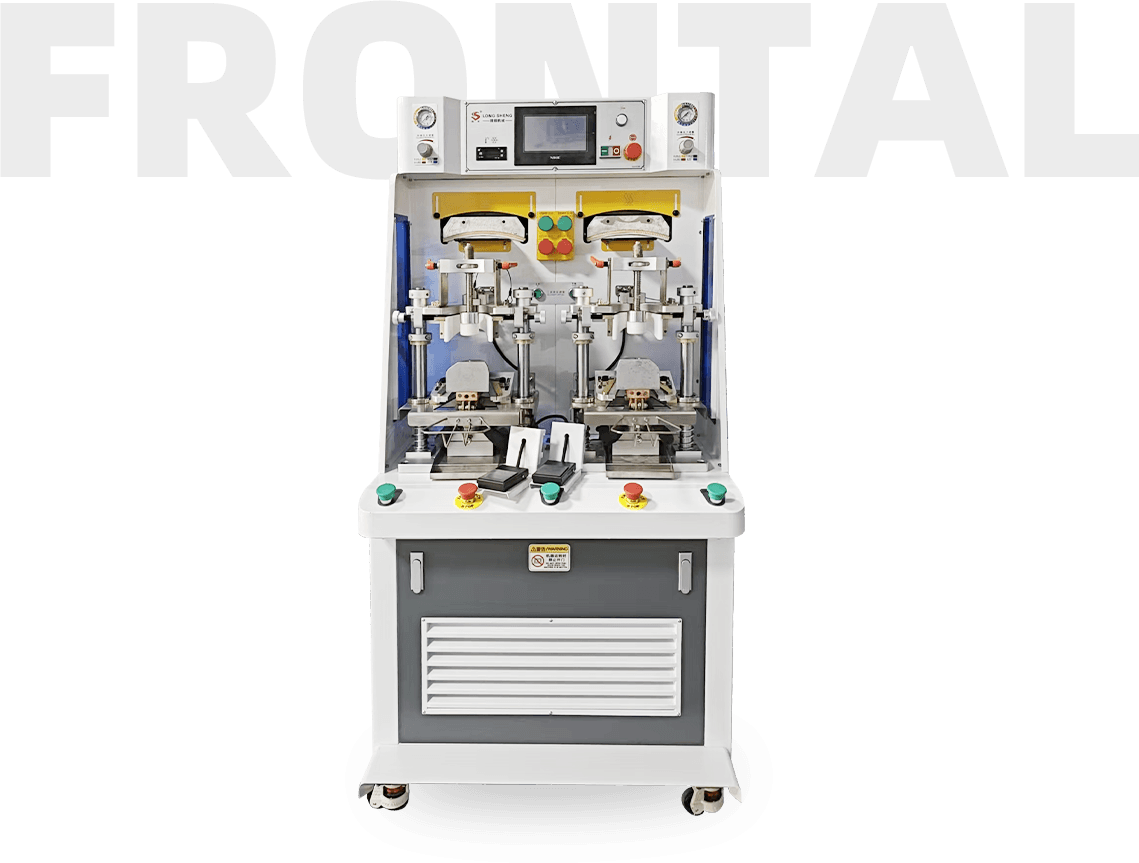

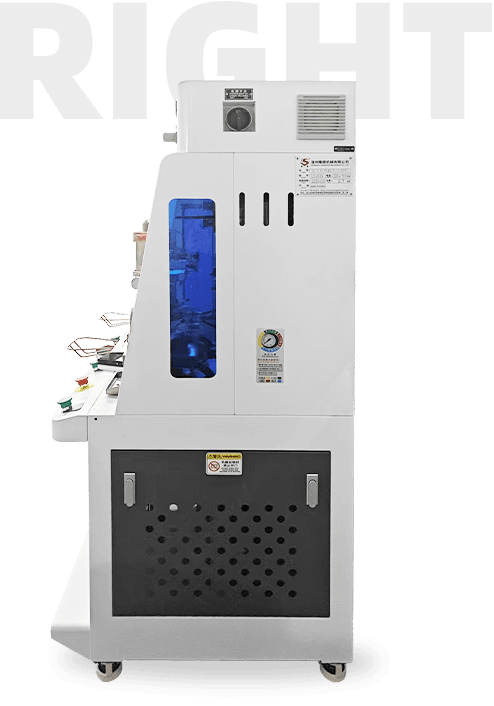

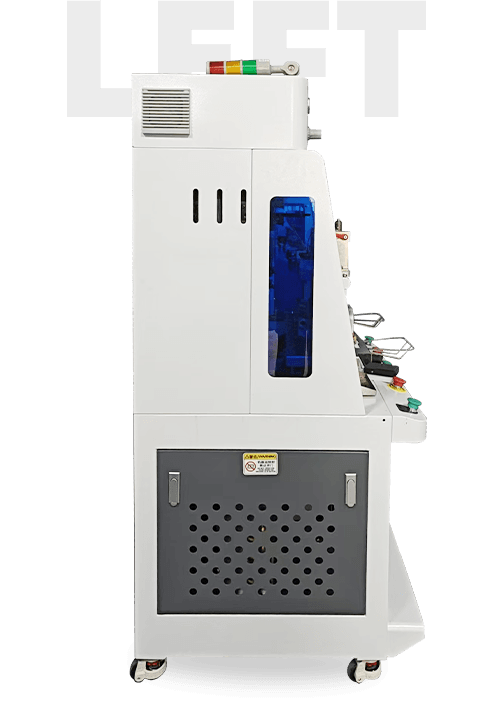

Detailed drawing

Maximum Pressure:

6-8KGS

3/8P

Machine Dimensions:

800*820*1630MM

900*940*1780MM

Package Dimensions：

Net weight：

220KGS

274KGS

Gross weight：

Model：

ACH-712E-2C2H

Detailed drawing

It is suitable for pre-molding of shoe toe cap of sports shoes,
casual shoes, leather shoes, California shoes and various shoes.

Voltage:

220V/50HZ/1Phase

Power：

2.7KW

Capacity:

1000Pairs/8 hours

Maximum Temperature：

200℃

Temperature Accuracy:

±2℃
